Perform this procedure if you want to perform a factory reset on your device.
Prerequisites
- Home Assistant Green
- microSD card
- Memory card reader for microSD (your computer might have an integrated card reader, otherwise use an external one)
- Computer with internet access
- You have created a backup and stored it on another system
Notice
Risk of losing your configuration
This process clears the data disk on your Green. Unless you create a backup, you will lose all data and configuration settings.
- A device reset wipes the data partition of your device. It removes all user data as well as Home Assistant Core, Supervisor, and any installed add-ons. The Home Assistant Operating System stays on the system.
- Once a device wipe is initiated, the data partition is marked as to be cleared on boot. Then, the system reinstalls the latest version of all Home Assistant components.
- To avoid losing data and configuration settings, create a backup and define a backup location outside of your Home Assistant.
To copy the Home Assistant Green OS to the SD card
Step 1
Downloading the Home Assistant Green OS installer
-
To download the Home Assistant Green OS installer, paste this into your browser.
https://github.com/NabuCasa/buildroot-installer/releases/tag/green-installer-20240410 -
To start the download, select the file green-installer-20240410.img.xz.
-
Download and start Balena Etcher.
- You may need to run it with administrator privileges on Windows.
Step 2

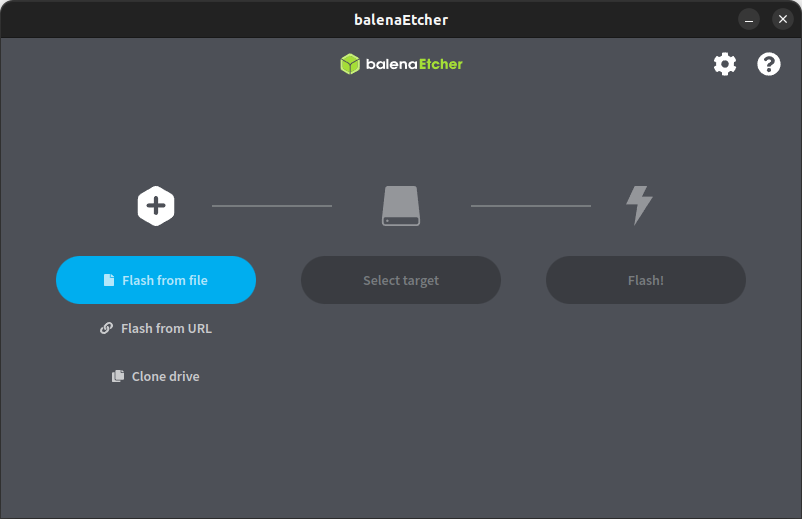

Selecting the image
- Choose Flash from file, then select the image you just downloaded.
Step 3

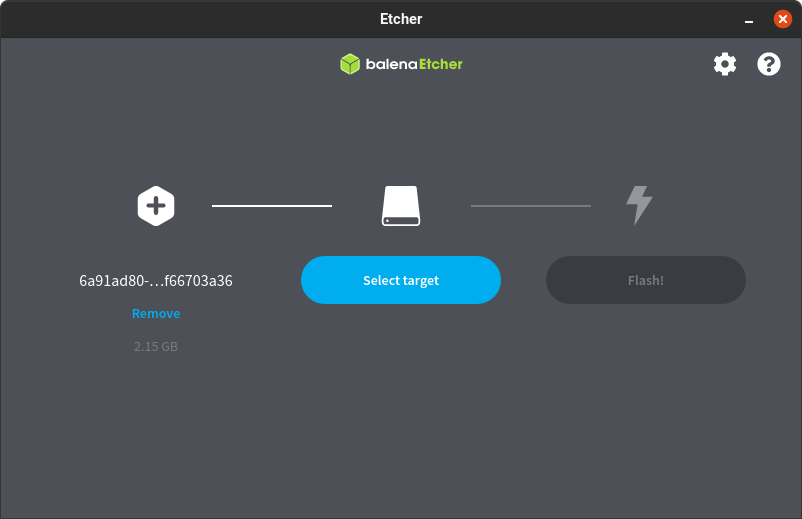

Selecting the target
- To select the target, insert the SD card to your computer.
- Select target, then pick the SD card as target.
Step 4

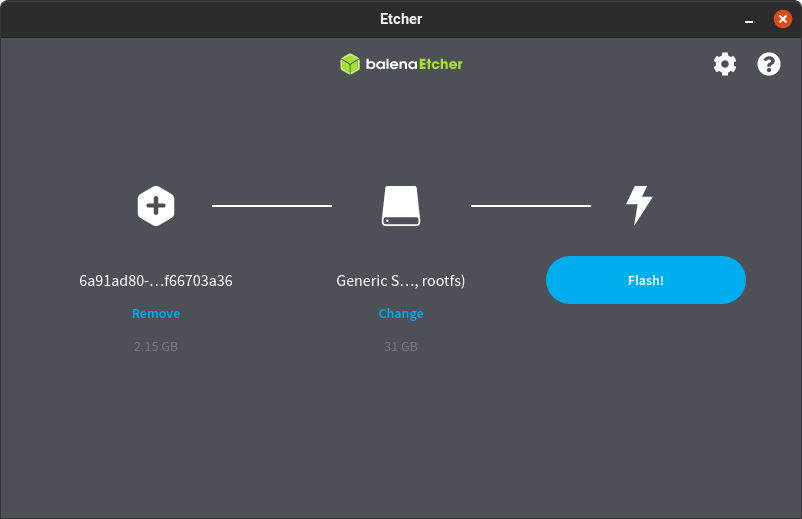

Writing the image
- To start writing the image to the SD card, select Flash!.
Step 5

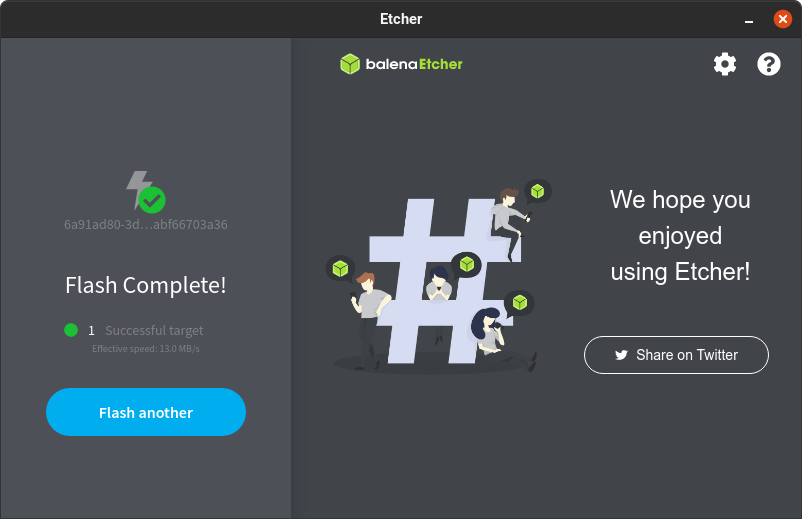

Flash complete
- Once Balena Etcher has finished writing the image, you will see a confirmation.
- You can now remove the SD card.
To reset the device using an SD card
Step 1
Shutting down the system
- In your Home Assistant UI, go to Settings > System and in the top right, select the three-dots menu. Select Restart Home Assistant.
- Then, select Shut down system.
- Wait until all the LEDs turned off.
- In case the shutdown via UI should not work:
- To shutdown gracefully, press the power button for 6 seconds.
- For a hard shutdown (do this only if all else fails), press the power button for 12 seconds.
- Remove the power cable to remove power from the system.
Step 2

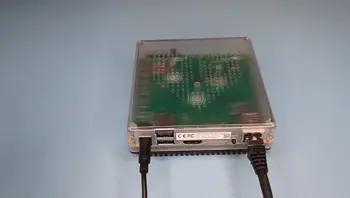

Inserting the SD card
- Insert the SD card with the Home Assistant Green OS installer.
- Make sure the Home Assistant Green is connected to the Internet.
Step 3
Powering up the system
- Press the power button.
- The operating system is being written to the eMMC.
- During this time, the yellow LED is blinking fast.
- Wait for the LEDs to turn off.
Step 4

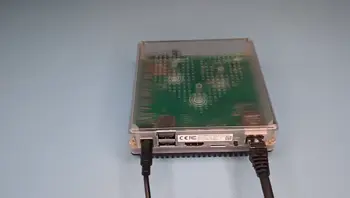

Removing the SD card
- When the LEDs turn off, the operating system has been written to the eMMC.
- Remove the SD card.
Step 5
Powering up the system
- Press the power button.
- Once the yellow LED blinks in a heartbeat pattern, the system is ready.
Step 6
Getting started with Home Assistant
- Info: Initial startup may take a while, depending on your internet connection.
- Install the app: To access Home Assistant from your mobile device, use the QR code to locate the app in the app store.
- Select your Home Assistant server:
-
Mobile: Confirm the IP address detected by the app. For example
http://192.168.1.196:8123. - Desktop: Visit http://homeassistant.local:8123 to access the Home Assistant user interface.
-
Mobile: Confirm the IP address detected by the app. For example
- The Home Assistant user interface guides you through the initial onboarding.
- Info: For further information, refer to the instructions provided.
