Follow these steps if you have 3D-printed your own enclosure parts and want to reassemble the device.
Notice
Risk of damage to equipment
- Disassembling and reassembling the device can void the warranty.

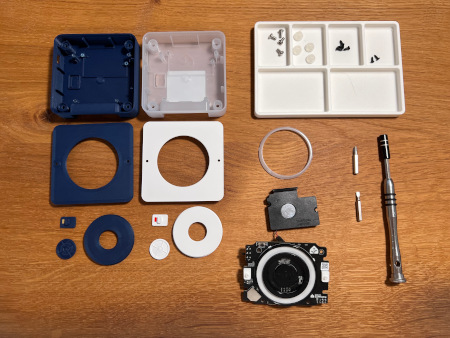

Prerequisites

- Disassembled Home Assistant Voice Preview Edition
- Your own awesome 3D-printed parts
- Enclosure on printables
- Enclosure on Makerworld
- No 2 crosshead screwdriver
- No 4 flathead screwdriver
To reassemble the enclosure using 3D-printed parts
Step 1

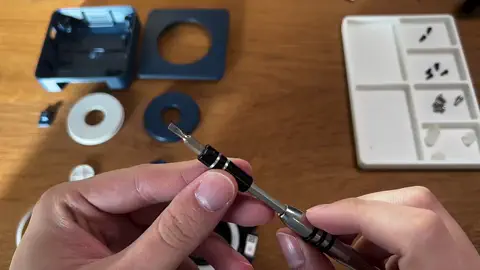

Placing the rubber ring

- Take the flathead screwdriver and remove the rubber ring from the button.
- The ring is glued to the button so this will be a bit sticky.
- Place the rubber ring onto the new button.
Step 2

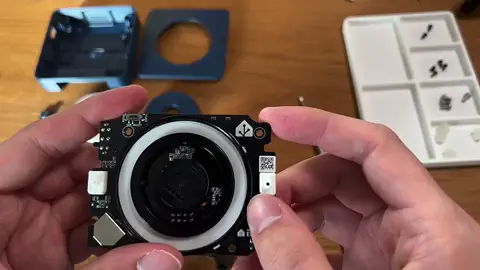

Assembling button and dial

- Take note of the orientation of the rotary disk. Rotate until it is aligned as shown in the video.
- Place the button onto the rotary disk.
- Take the dial and take note of the square cutout. It must align with the button.
- Slide the dial onto the board and press until it clicks into place.
- Rotate the dial. If it does not rotate easily, make sure the dial is not tilted.
Step 3

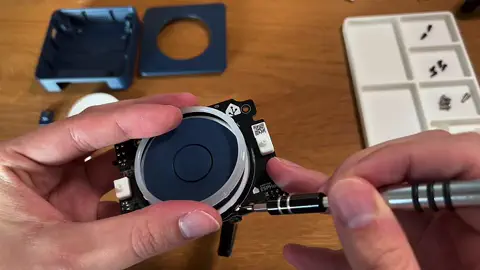

Placing the LED diffuser ring

- The LED diffuser ring has a small latch. Make sure it aligns with the notch in the board.
- Gently press the LED diffuser ring until it clicks into place.
Step 4

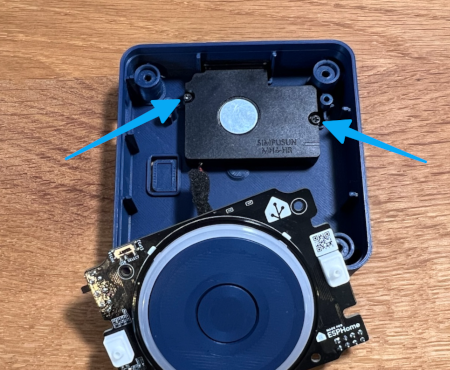

Attaching the speaker

- Take the crosshead screwdriver and attach the speaker with the 2 screws.
Step 5

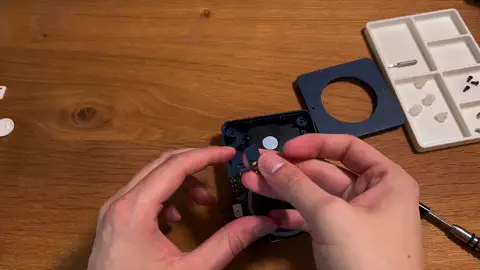

Attaching the mute switch

- Attach the mute switch.
- Mind the orientation. The colored part should face the middle, not the corner.
- Find the switch opening in the case.
- Slide the board into the case. Make sure the switch goes through the opening.
Step 6

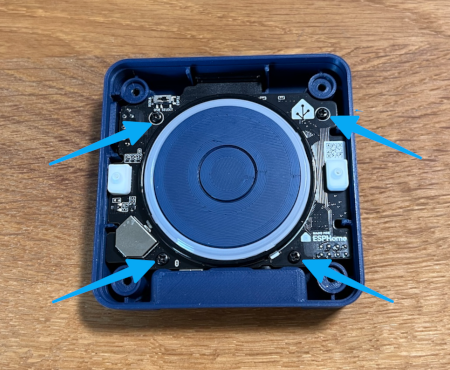

Attaching the PCB

- Take the crosshead screwdriver and the 4 screws and attach the PCB.
Step 7

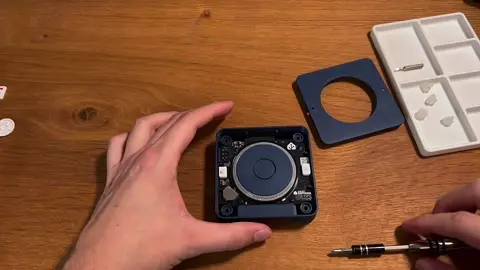

Placing the top cover onto the device

- Pick up the top cover and orient it to fit the case.
- The 2 holes should be above the microphones.
- Watch out for the side with the wider border.
- Slide the top cover onto the device.
Step 8
Closing the enclosure

- Take the crosshead screwdriver and the 4 screws and close the enclosure.
- Place the rubber feet.
Step 9

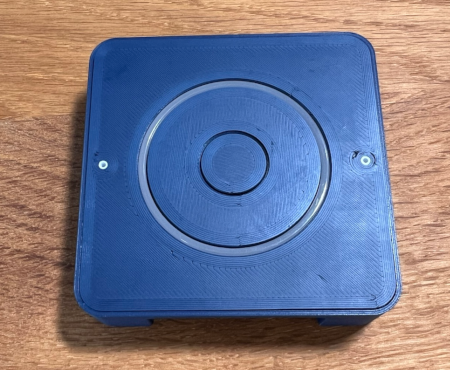

Done!

- Connect a USB-C power supply and continue using the device.
