Is Zigbee2MQTT supported by Home Assistant Connect ZBT-1? – Nabu Casa

The Home Assistant team officially supports ZHA (Zigbee Home Automation), the Zigbee stack integrated into Home Assistant Core.

The Zigbee2MQTT project has experimental support (in beta stage) for the Silicon Labs radio on Home Assistant Connect ZBT-1 (or Home Assistant SkyConnect, if you have that variant). With this setting, Zigbee2MQTT is known to work on Home Assistant Connect ZBT-1.

Note: The Zigbee Home Automation integration is active by default! If you are using Zigbee2MQTT, remember to delete and ignore the discovered Zigbee Home Automation integration to avoid interference.

Note: When setting up Zigbee2MQTT with the Home Assistant Connect ZBT-1, you will need to configure the adapter type in Zigbee2MQTT. Make sure the following is present in your Zigbee2MQTT configuration:

After copying the example below, replace the <usb-serial-number> placeholder with the actual serial number.

serial:
  adapter: ezsp
  port: /dev/serial/by-id/usb-Nabu_Casa_SkyConnect_v1.0_<usb-serial-number>-if00-port0
  baudrate: 115200
  rtscts: true

serial:
  adapter: ezsp
  port: /dev/serial/by-id/usb-Nabu_Casa_Connect_ZBT-1_v1.0_<usb-serial-number>-if00-port0
  baudrate: 115200
  rtscts: true

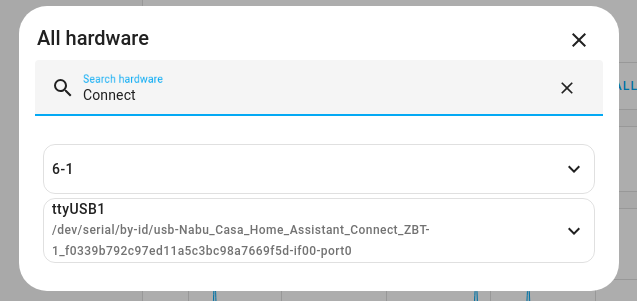

You can find the port information under Settings > System > Hardware, then on the menu button, select All Hardware and search for Connect.

Connect ZBT-1 Identification
